Controller Bracket

CRL series

UNIVERSAL CONTROLLER CLAMP

Adjustable clamp can hold any type of GNSS controllers.

  • CRL-CLM1

  • CRL-TP1

  • CRL-SLC with compass

  • 7 grade angle adjustable

  • Width & Depth adjustable *CRL-SLC : width only

  • Built-in compass
    *CRL-SLC only

SPECIFICATIONS

MODEL CRL-CLM1 CRL-TP1 CRL-SLC
Device
size		 Controller ⁄ Smartphone 7 inch Tablet 8 inch Tablet
Width approx. 67 ∼ 110mm approx. 108 ∼ 140mm approx. 120 ∼ 150mm
Depth up to 55mm up to 40mm up to 13mm
Pole size 28 ∼ 33mmφ 28 ∼ 33mmφ 28 ∼ 33mmφ
Dimensions 215 × 110 × 45mm 235 × 122 × 45mm 260 × 90 × 45mm
Weight approx. 340g approx. 360g approx. 340g

DEVICE EXAMPLES

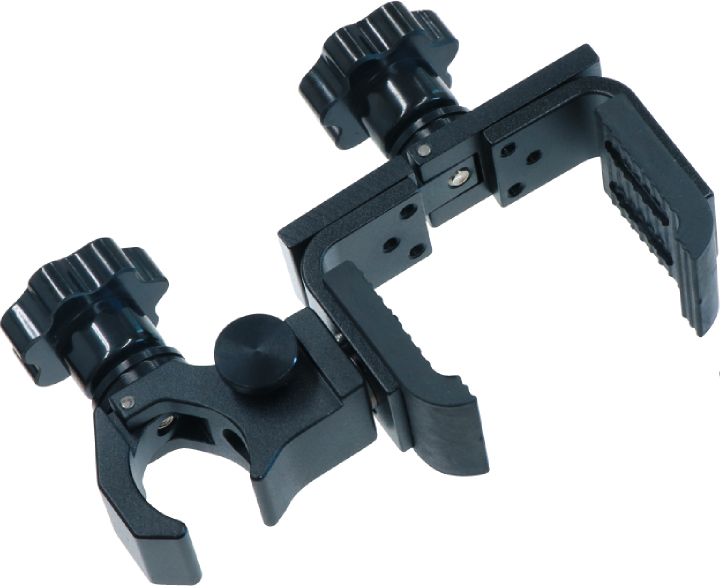

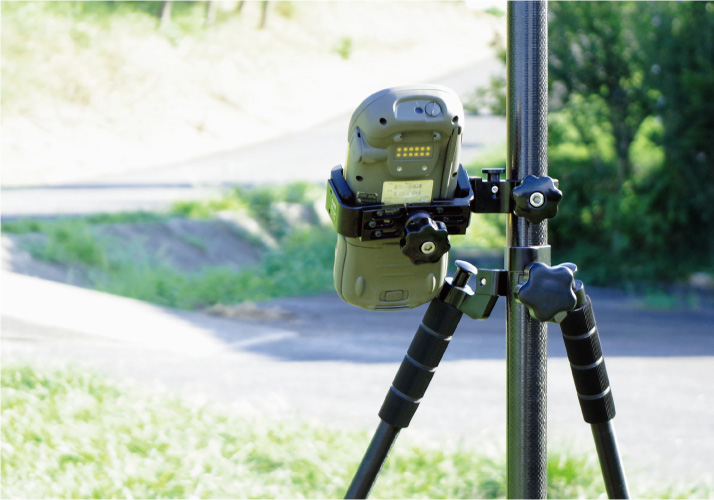

CRL-CLM1
• FC-500 ⁄ FC-250
• SHC-500
• TOUGHBOOK 4.7 inch
• TOUGHBOOK 5 inch

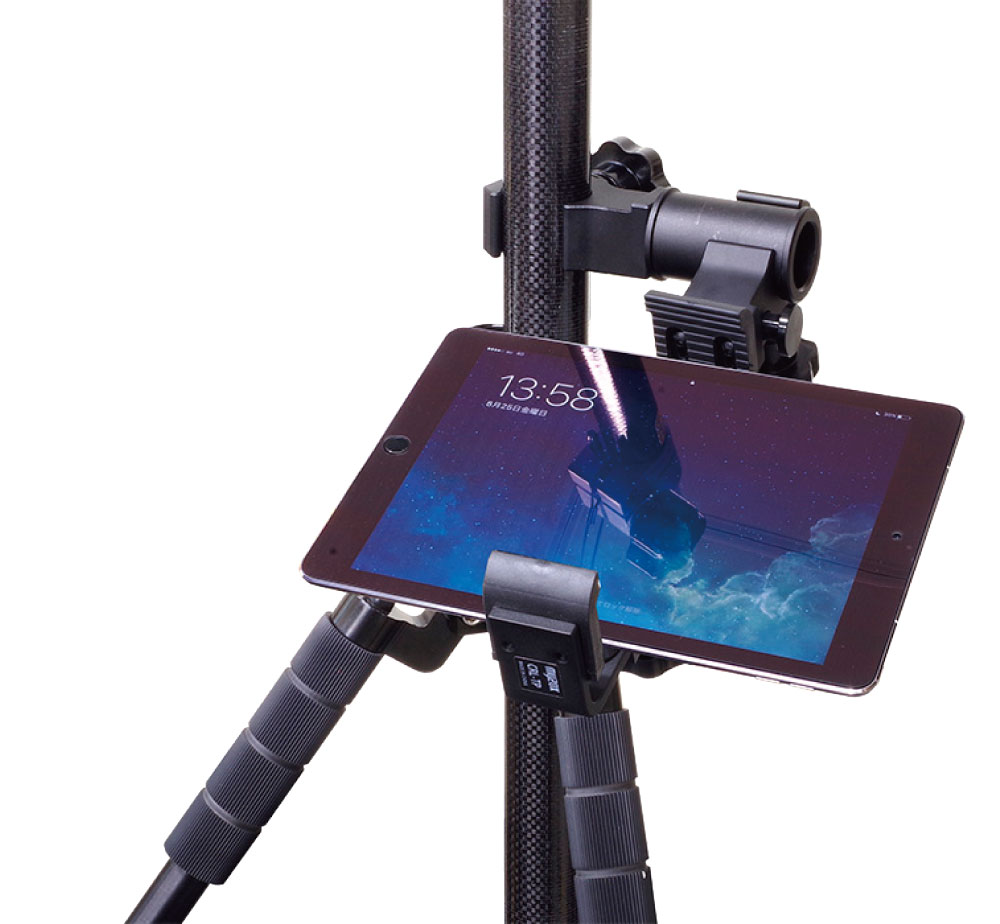

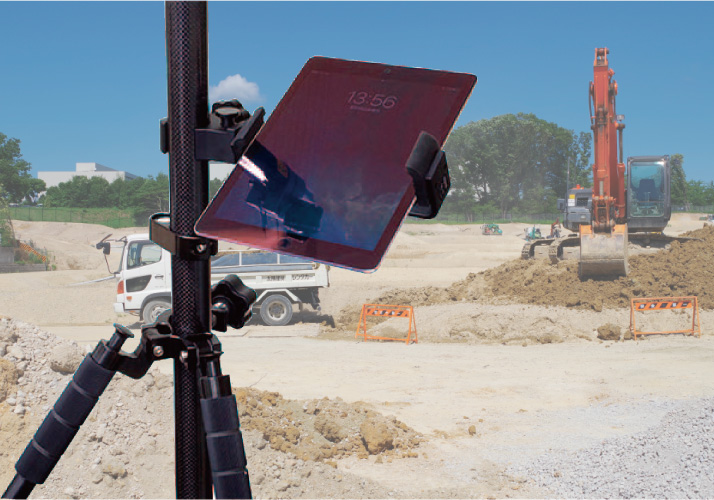

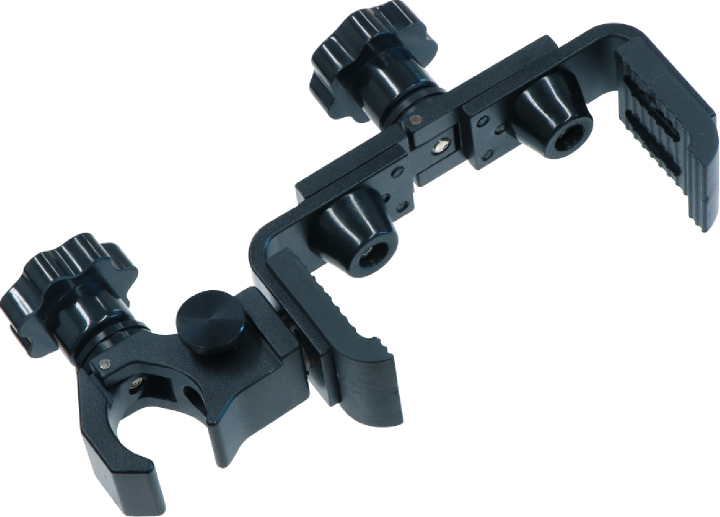

CRL-TP1
• TOUGHBOOK 7 inch
• Huawei MediaPad T3 7
• iPad mini
• FC-5000

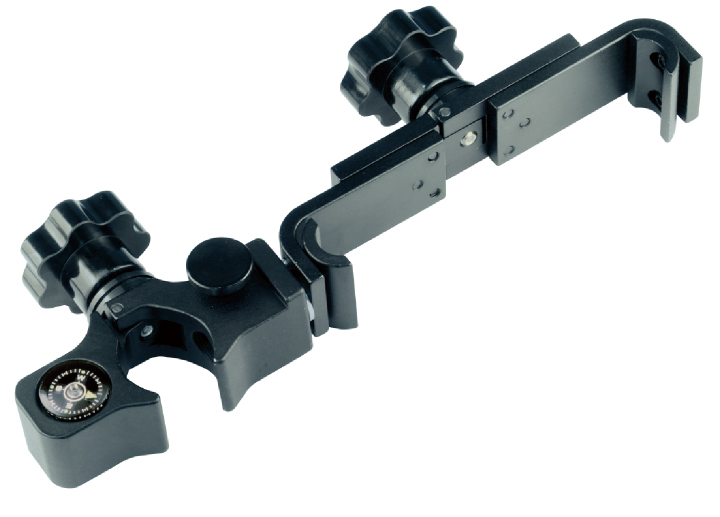

CRL-SLC

• 8 inch tablet
• Galaxy Tab Active2

OPTIONS

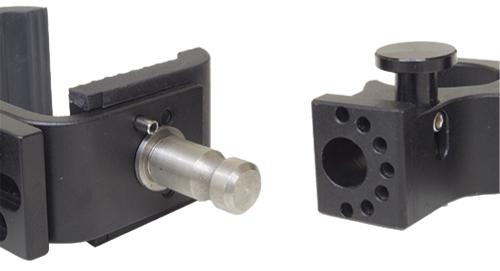

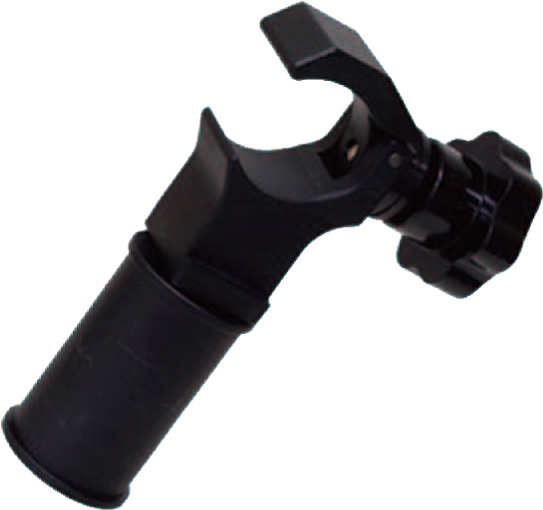

  • Adapter for Field Controller Bracket

    CRL-HAP1

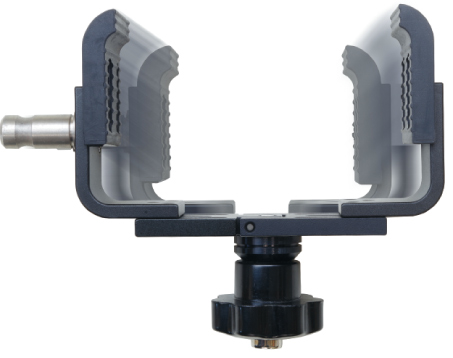

    Adapter for horizontal use

PRODUCT NAMEMODELPKG QTYCODE NO.C/O
Universal Controller Bracket CRL-CLM1 1 222839 CN
Field Controller Bracket CRL-TP1 1 222840 CN
Field Controller Slim Bracket with Compass CRL-SLC 1 223556 CN
Adapter for Field Controller Bracket CRL-HAP1 1 222841 CN
