Products

STAFF   ▸   Aluminium Staff

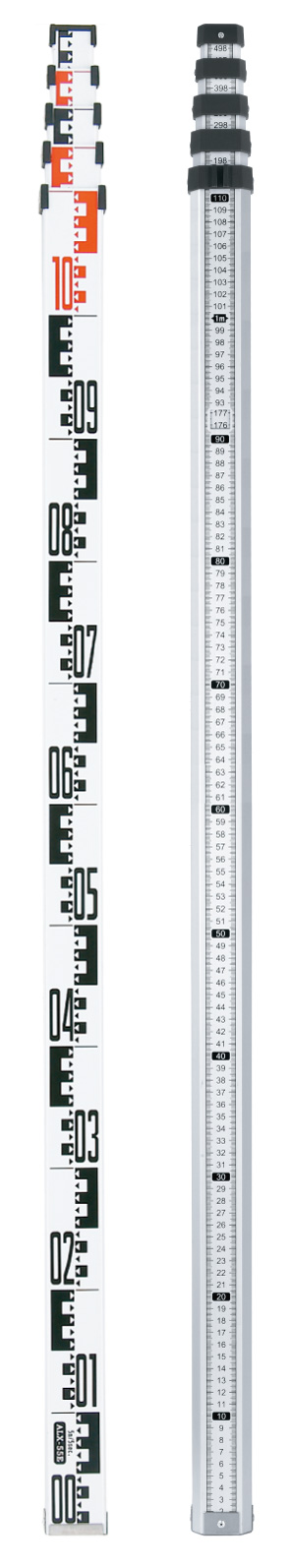

Aluminium Staff Economical type

ALX series ⁄ AGX series

GOOD BALANCED

Good balanced economical model.

  • ALX-55E2

  • AGX-55E2

  • SA-60
    Circular level 60’⁄ 2mm
    (Option)

  • MG-02A
    Staff button
    (Option)

  • Dimensions
    4m ⁄ 4sec.

  • Dimensions
    5m ⁄ 5sec.

  • 2 TYPES OF GRADUATION

    ALX series
    TRI-E type

    AGX series
    Regular type

SPECIFICATIONS

Model ALX-55E2 ALX-55Y2 AGX-55E2 AGX-55MFAGX-33E2
Graduation (front) TRI-E Metric YW E Metric Y E
Graduation (back) 0 UP 0 UP 0 UP Inch / Feet 0 UP
Section 5m ⁄ 5sec. 5m ⁄ 5sec. 5m ⁄ 5sec. 5m ⁄ 5sec. 3m ⁄ 3sec.
Full closed 1,235mm 1,235mm 1,235mm 1,235mm 1,170mm
Weight 1.50kg 1.50kg 1.50kg 1.50kg 1.00kg
PRODUCT NAMEMODELPKG QTYMOQCODE NO.C/O
Aluminium Staff 5m⁄ 5sec. TRI-E ALX-55E2 10 10 224265 CN
Aluminium Staff 5m⁄ 5sec. Metric YW ALX-55Y2 10 10 222442 CN
Aluminium Staff 5m⁄ 5sec. E face AGX-55E2 10 10 223488 CN
Aluminium Staff 5m⁄ 5sec. Metric Y AGX-55MF 10 10 223551 CN
Aluminium Staff 3m⁄ 3sec. E face AGX-33E2 10 10 223489 CN
