STAFF   ▸   Aluminium Staff

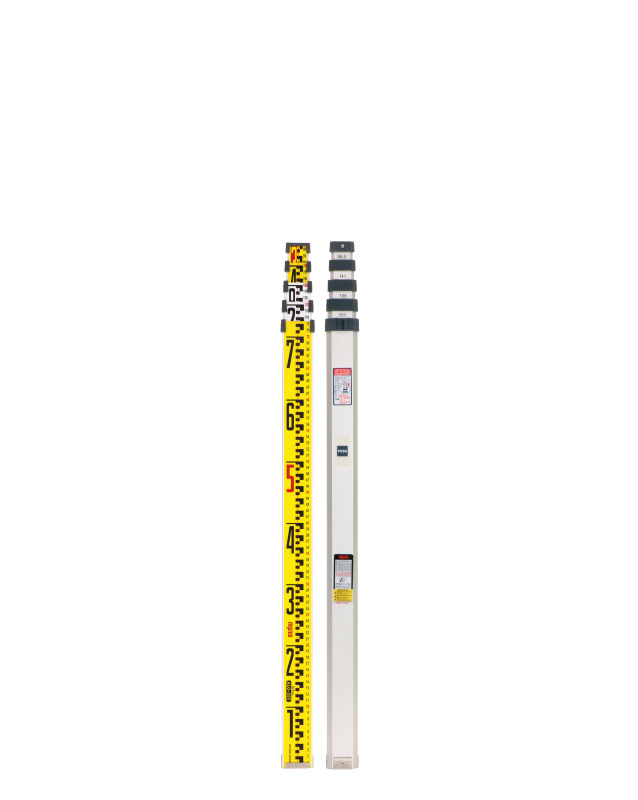

Aluminium Staff Standard type

ALG series

STANDARD

ALG series is world standard type of staff.

  • ALG-25Y

  • ALG-25E2

  • ALG-35Y

  • ALG-55Y

  • ALG-55E2

  • ALG-55EB

  • SA-60
    Circular level
    60’⁄ 2mm
    (Option)

  • MG-02A
    Staff button
    (ALG-25Y/35Y)

  • MG-04
    Staff button

  • Dimensions

  • STANDARD TYPE

    World standard staff.
    Having many choices such as colors, graduation and lengths and so on.
    You can find the best matching one from the line-up.
    Myzox is a top share company in Japanese market with ALG series.
    Simple product, but there is a reason why Myzox is a top share.

  • HOW TO READ (Metric YW)

  • STAINLESS BOTTOM

FEATURES

⋅ Most popular model and world's standard
⋅ Clear and durable graduation print
⋅ Rigid square shape stopper button
⋅ 1mm pitch reading on the back
⋅ Red center line help to collimate(5mm/10mm graduation model)

SPECIFICATIONS

Model ALG-55Y ALG-55E2 ALG-55EB ALG-35Y ALG-25Y ALG-25E2
Graduation (front) Metric YW E EB Metric YW Metric YW E
Graduation (back) Photo⁄ Inside 0 UP Inside Inside Inside 0 UP
Section 5m ⁄ 5sec. 5m ⁄ 5sec. 5m ⁄ 5sec. 3m ⁄ 5sec. 2m ⁄ 5sec. 2m ⁄ 5sec.
Full closed 1,245mm 1,245mm 1,245mm 845mm 645mm 645mm
Weight 1.70kg 1.70kg 1.70kg 1.20kg 0.9kg 0.9kg

STANDARD ACCESSORIES

⋅ Button protection label MG-02PS (ALG-25Y / 35Y)

PRODUCT NAMEMODELPKG QTYMOQCODE NO.C/O
Aluminium Staff 5m⁄ 5sec. Metric YW ALG-55Y 8 8 011005 TW
Aluminium Staff 5m⁄ 5sec. E face ALG-55E2 10 10 240028 TW
Aluminium Staff 5m⁄ 5sec. EB face ALG-55EB 10 10 091545 TW
Aluminium Staff 3m⁄ 5sec. Metric WY ALG-35Y 10 10 222722 TW
Aluminium Staff 2m⁄ 5sec. Metric WY ALG-25Y 8 8 221495 TW
Aluminium Staff 2m⁄ 5sec. E face ALG-25E2 10 10 222056 TW
