1.5 inch Prism
  • Leaflet

M-1500 series

STANDARD OF MINI PRISM

Slidable mini prism with prism constant 0mm.

  • M-1500GP
    Dual Lock

  • M-1500MP

  • M-1500GP
    Dual lock
    (Screw ⁄ Quick)

  • M-1500MP
    Screw lock

  • Circular level
    (40’ ⁄ 2mm)

  • WIDE TILTING

    Maximum elevation angle is 38 degree. It is 5 degree wider than conventional model.
    This change will bring an accurate surveying at closer range.

  • REMOVABLE COVER

    You can remove the cover to put your brand label.

  • MAINTENANCE PERFORMANCE

    The soft patch on the inside locking part that contacts the pole is more prone to wear. To make maintenance easier, we have changed to an independent structure.

  • KNOB & CIRCULAR LEVEL

    To handle easily, we changed to the width of a fixation knob with fine slits.
    The bottom color of circular level is changed to silver. Silver color help to increase the visibility.

SPECIFICATIONS

Model M-1500MP M-1500GP
Prism size 1.5 inch (38mm) 1.5 inch (38mm)
Prism constant 0mm 0mm
Beam deviation 2" - 3" 2" - 3"
Prism coating Silver Silver
Size 81 × 73 × 53 mm 81 × 73 × 53 mm
Pole size φ9mm φ9mm
Weight approx. 178g approx. 190g

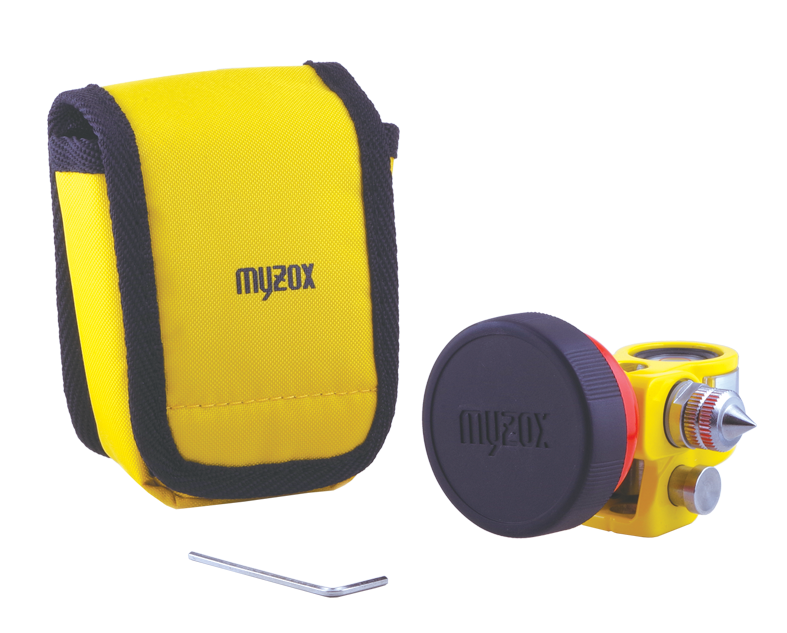

STANDARD ACCESSORIES

  • ⋅Carrying case
  • ⋅Hexagonal wrench
  • ⋅Corner adapter (Built-in)
  • ⋅Lens cap

OPTION

Prism Protector SJ series

SUITABLE PRODUCT

SJ-M (for Prism) M-1500MP ⁄ GP, MG-1500SL, MG-1504Y ⁄ B
SJ-F (for Body) M-1500MP ⁄ GP
PRODUCT NAMEMODELPKG QTYMOQCODE NO.C/O
1.5 inch Prism Dual Lock M-1500GP 1 10 221486 CN
1.5 inch Prism M-1500MP 1 10 221485 CN
Case for M-1500 series M-1500-C 1 10 221988 CN
Prism Protector for Prism SJ-M 1 10 219296 TW
Prism Protector for Body SJ-F 1 10 221808 TW
