Products

MEASURING TOOL   ▸   Other tapes / Rope / Caliper

Digital Caliper

DCP-150 / WCP-150

STANDARD TYPE & WATERPROOF TYPE

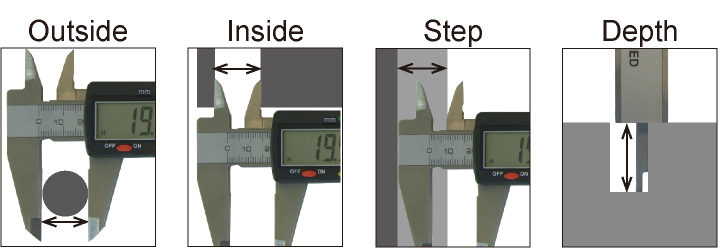

Both types have a depth bar.

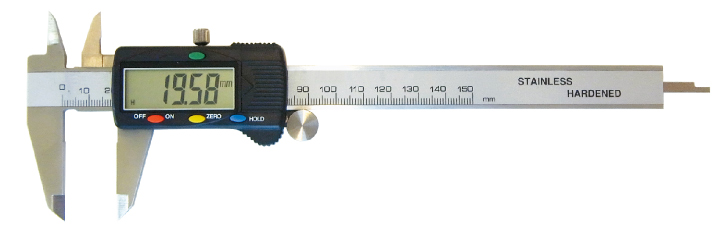

  • DCP-150
    ⋅ 0 setting
    ⋅ Data hold

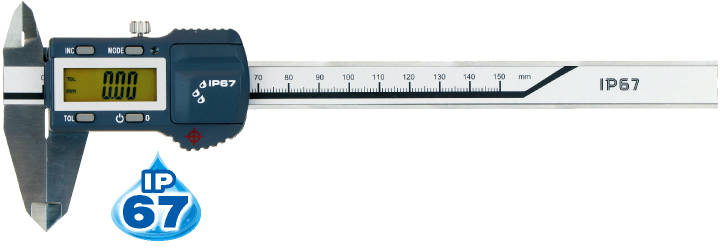

  • WCP-150
    ⋅ 0 setting
    ⋅ Relative measurement
    ⋅ Tolerance setting

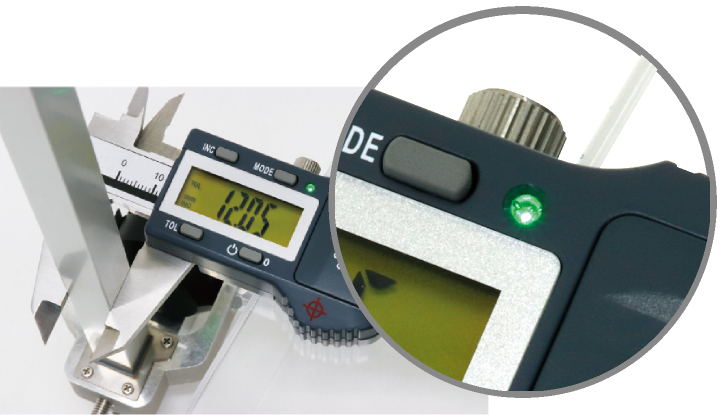

  • TOLERANCE SETTING (WCP-150)

    Green light will be on when measured value is within the specified tolerance range.

SPECIFICATIONS

MODEL DCP-150 WCP-150
Measuring range 0 ∼ 150mm 0 ∼ 150mm
Resolution 0.01mm 0.01mm
Accuracy ±0.03mm ±0.02mm
Response speed 1.5m ⁄ second 3.2m ⁄ second
Water & dust resistance - IP67
Power LR44 × 1 CR2032 × 1
Dimensions 235 × 77 × 16.2mm 235 × 76 × 15.4mm
Weight 156g 160g

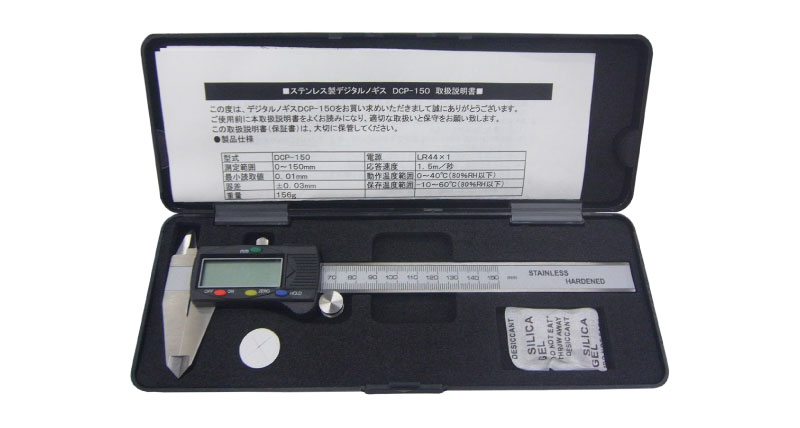

STANDARD ACCESSORIES

  • ⋅Battery
  • ⋅Manual
  • ⋅Case
PRODUCT NAMEMODELPKG QTYMOQCODE NO.C/O
Digital Caliper DCP-150 1 10 220406 CN
Waterproof Digital Caliper WCP-150 1 10 222686 CN
