2.5inch Prism

KG2.5 series

3 TYPES PRISM CONSTANT

KG series has 3 types of prism constant, 0mm ⁄ -30mm ⁄ -40mm.

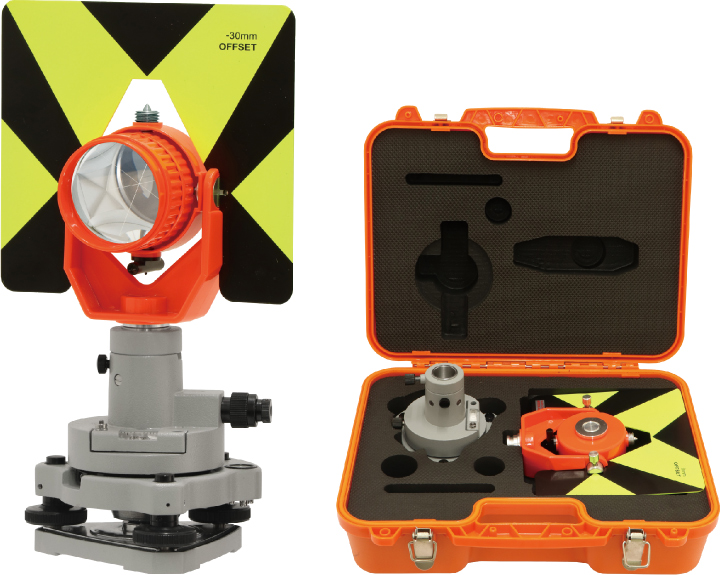

  • KG-2500G (Tribrach set)

  • KG-2500GP
    (Prism Target set)

  • Bright field of view
    (optical plummet)

  • Height adjustable : 23mm

SPECIFICATIONS

Prism size 2.5 inch (63.5mm)
Prism constant 0mm ⁄ -30mm (with adapter) ⁄ -40mm
Prism height 98.5mm ⁄ 180.5 ∼ 203.5mm (with height adapter)
Beam deviation 5" - 6"
Prism coating Silver
Optical plummet 3.6X

SET CONTENTS

KG-2500G

⋅ Prism
⋅ Target & Holder set
⋅ Offset adapter -30mm
⋅ Tribrach (MG030G)
⋅ Adjustment tools
⋅ Hard case

KG-2500GP

⋅ Prism
⋅ Target & Holder set
⋅ Offset adapter -30mm
⋅ Soft case

Offset adapter-30mm

PRODUCT NAMEMODELPKG QTYMOQCODE NO.C/O
2.5inch Prism ⁄ Tribrach set KG-2500G 2 10 223564 CN
2.5inch Prism ⁄ Prism Target Set KG-2500GP 10 10 222928 CN
