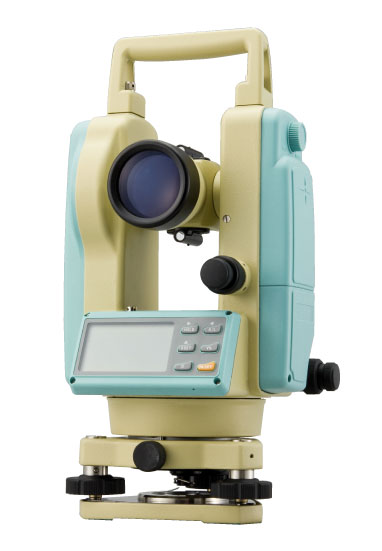

DIGITAL THEODOLITE DTC-110
  • Leaflet
  • Product Video
SPECIFICATIONS
Telescope
Image Erect
Magnification Ratio 30X
Effective Aperlure of Object Lends 45mm
Resolution 3"
Angle of View 1°30'
Shortest Visibility Distance 1.35m
Stadia Multipication Constant 100
Stadia Addition Constant 0
Optical Plummet
Magnification Ratio 3X
Angle of View 5°
Focusing Range 0.5m to ∞
Ambient Temperature
-20°C to 50°C
Power Supply
Alkaline batteries/ rechargeable Ni-H battery Duration of Operation: 36h (Alkaline)
Ni-H Battery Source Voltage: 4.8V 1,500mAh
Angle Measuring System
Made of Angle Measurement Photoelectric Incremental Reading
Detection Method V: Single side H: Both side
Min. Reading 5"/ 10"
Precision of Angle Measurement 10"
Unit of Angle DEG MIL GON
Display LCD Double side
Sensitivity of Vial
Tubular Vial 30"/ 2mm
Circular Vial 8'/2mm
Tribrach
Shifting (35mm locking handle) or Fixing (5/8 locking handle)
Dementions

Body

 W164xL154xH340mm
Weight 4.6kg
Case W440xH245xL280mm
Weight 3.05kg (Incl. Accessories)
