PRISM   ▸   2.5 inch Prism

2.5 inch Prism

SG2.5 series

2 TYPES PRISM CONSTANT

SG series has 2 types of Prism Constant, 0mm ⁄ 30mm.

  • SG-2500G
    (Tribrach set)

  • SG-2500GP

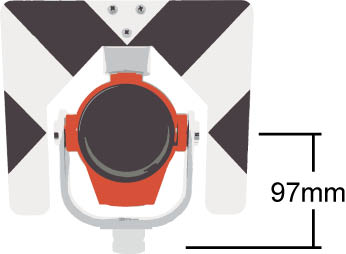

    (Prism target set)

  • Silver coating

  • Bright field of view
    (Optical plummet)

  • Prism constant

SPECIFICATIONS

Model SG-2500S (P) SG-2500G (P)
Prism size 2.5inch (63.5mm) 2.5inch (63.5mm)
Prism constant 0 ⁄ -30mm 0 ⁄ -30mm
Beam deviation 5” - 6” 5” - 6”
Prism coating Silver Silver
Optical plummet 3.6X 3.6X

PACKAGE

  • Tribrach set (with carrying case)
    : Prism target set, Tribrach set (MG030), Adjustment tools
  • Prism target set (with soft case)
    : Prism, Target & Holder set
PRODUCT NAMEMODELPKG QTYMOQCODE NO.C/O
2.5inch Prism ⁄ Yellow ⁄ Tribrach set SG-2500S 2 10 222290 CN
2.5inch Prism ⁄ Gray ⁄ Tribrach set SG-2500G 2 10 222289 CN
2.5inch Prism ⁄ Yellow ⁄ Prism Target Set SG-2500SP 10 10 - CN
2.5inch Prism ⁄ Gray ⁄ Prism Target Set SG-2500GP 10 10 217944 CN
Prism & Holder set for SG-2500SP MY201SHP 1 10 222273 CN
Target for SG-2500SP MY201ST 1 10 222272 CN
