MEASURING TOOL   ▸   Angle Level

Digital Angle Level DIGILEVEL V series
  • Leaflet

DGLV series

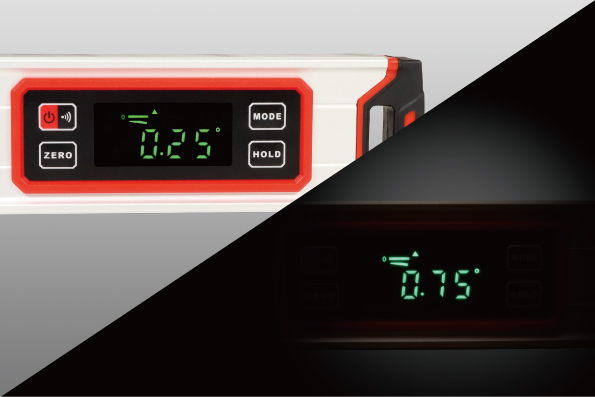

CLEAR VIEW EVEN IN THE BRIGHT SUNLIGHT

You can read the digit not only in the dark, but also in the bright sunlight.

  • DGLV-300

  • DGLV-400

  • DGLV-600

  • DGLV-1000

  • Built-in magnet

  • Auto digit inversion

  • V-groove

  • Hanging type blister package

  • CLEAR VIEW WITH GREEN LED DISPLAY

    Having trouble seeing the display in the bright sunlight? DIGILEVEL V series show the digit clearly with green LEDdisplay, so that you can read the digit not only in the dark, but also in the bright sunlight.

FEATURES

  • ⋅ Water and dust resistance IP54
      You can use it in tough field
  • ⋅ Built-in magnet / V-groove
      Strong attachment over a curve or cylindrical magnetic surfaces
  • ⋅ Automatic digit inversion
      Display will be up-side down when overhead measurements
  • ⋅ 0 setting (relative measurement)
  • ⋅ Hold function helps save current angle on display
  • ⋅ 0° and 90° beeper function
  • ⋅ Auto-power off approx. 3minutes
  • ⋅ Self-calibration
  • ⋅ Battery indicator

SPECIFICATIONS

Model DGLV-300 DGLV-400 DGLV-600 DGLV-1000
Unit degree(°) ・ slope(%) ・ mm/m
Resolution 0.05° ・ 0.08% ・ 1mm/m
Reading accuracy ±0.1°(at 0°& 90°) / ±0.2°(at other)
Vial accuracy ±1.0mm/m
Measuring range 4 × 90°(0 ∼ 360°)
Operating temperature 0 ∼ +40°C
Storage temperature -10 ∼ +50°C
Power AAA alkaline battery × 2
Dimensions 300 × 28 × 62.5mm 400 × 28 × 62.5mm 600 × 28 × 62.5mm 1,000 × 28 × 62.5mm
Wight (excl.battery) 381g 538g 749g 1,165g

STANDARD ACCESSORIES

  • ⋅Soft case
  • ⋅Manual
PRODUCT NAMEMODELPKG QTYMOQCODE NO.C/O
DIGILEVEL V / 300mm DGLV-300 10 10 224875 CN
DIGILEVEL V / 400mm DGLV-400 10 10 224876 CN
DIGILEVEL V / 600mm DGLV-600 5 5 224877 CN
DIGILEVEL V / 1000mm DGLV-1000 5 5 224878 CN
