Prism Pole 2.0 Meter
  • Leaflet

PP-200 series

SCREW LOCK

The screw clamp can lock tight easily.

  • Built-in Circular Level
    (40 ′ ⁄ 2mm)

  • Pole Diameter

  • Removable shoe tip

  • Screw lock

  • PRISM HEIGHT GRADUATION

    PP-200S97 indicates prism center height from measuring points. Because pole graduation of PP-200S97 includes prism center height of Myzox 2.5 inch prism target. (97mm)

FEATURES

⋅ Screw lock to tighten and secure
⋅ High straightness
⋅ Removable shoe tip
⋅ Built-in circular level

SPECIFICATIONS

Model PP-200S PP-200S97
Full extended 2,000mm 1,903mm
Full closed 1,130mm 1,130mm
Screw 5 ⁄ 8 inch male 5 ⁄ 8 inch male
Weight approx. 945g approx. 945kg
Color interval 20cm 20cm
Graduation 5mm 5mm
Section 2.0m ⁄ 2 sec. 2.0m ⁄ 2 sec.

STANDARD ACCESSORIES

•Carrying case

OPTION

  • Flexible Flat Shoe
    RCP-FF

  • Flat Pole Shoe
    RCP-2

PRODUCT NAMEMODELPKG QTYMOQCODE NO.C/O
Prism Pole PP-200S 10 10 224370 CN
Prism Pole (Prism height off set) PP-200S97 10 10 224371 CN
Replacement Shoe Tip PP-5S 1 10 224470 CN
Replacement Case RCP-200-C 1 10 223944 CN
Flexibile Flat Shoe RCP-FF 1 10 224259 JP

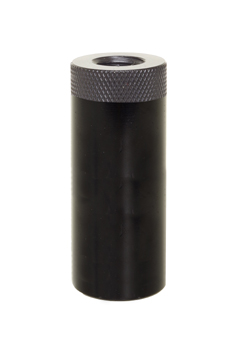

Flat Pole Shoe RCP-2 1 10 221509 CN
