LASER SCANNING   ▸   Sphere Target

Laser Scanner Target Sphere
  • Leaflet

ST series

NOT TO WORRY ABOUT THE ANGLE

For target above reference points and point clouds registration.

  • ST-145S
    for shorter distance

  • ST-200S
    for longer distance

  • COMES WITH 2 ADAPTERS FOR VARIOUS USE

    • ST-SA

    • Center height with Adapter ST-SA

    • Magnet Adapter

    • Center height with Magnet Adapter

  • CONBINATION USE WITH SCANNER TARGET POLE STP-130 & ASSIST TRIPOD TLG100

    STABLE, FIXED HEIGHT
    Instead of using bipod, take assist tripod TRILEGGER so it can hold the sphere firmly and make stable reference points. By using several sets of sphere, pole and assist tripod, prevent the height setting mistakes.

    EASY SETTING
    Sphere, pole, assist tripod, all together, they are lightweight (lower than 5kg) so it is easy to carry around in assembled condition and set up at field.

SPECIFICATIONS

Model ST-145S ST-200S
Size (Sphere) φ145mm φ200mm
Size (Case) 530 × 410 × 250mm 530 × 410 × 250mm
Weight (Sphere 1pc) approx. 342g approx. 790g
Screw W5/8 female (with ST-SA)
Operation confirmed FARO, Leica, RTC360, Trimble X7

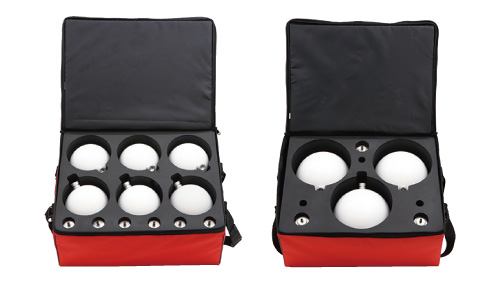

STANDARD ACCESSORIES

  • ST-145S-S
  • ⋅Sphere φ145mm(ST-145S) × 6
  • ⋅Adapter(ST-SA) × 6
  • ⋅Magnet adapter(ST-M145) × 6
  • ⋅Case(M-ST145)
  • ST-200S-S
  • ⋅Sphere φ200mm(ST-200S) × 3
  • ⋅Adapter(ST-SA) × 3
  • ⋅Magnet adapter(ST-M200) × 3
  • ⋅Case(M-ST200)
PRODUCT NAMEMODELPKG QTYMOQCODE NO.C/O
Sphere 145mm dia. Set ST-145S-S 2 2 224656 CN
Sphere 200mm dia. Set ST-200S-S 2 2 224657 CN
Sphere 145mm dia. / 1pc ST-145S 1 2 224658 CN
Sphere 200mm dia. / 1pc ST-200S 1 2 224659 CN
Adapter ST-SA 1 2 224949 CN
Magnet Adapter for 145mm ST-M145 1 2 224950 CN
Magnet Adapter for 200mm ST-M200 1 2 224952 CN
Replacement Case for 145mm M-ST145 2 2 224951 CN
Replacement Case for 200mm M-ST200 2 2 224953 CN
