FEATURES

⋅Prism constant 0mm

 Preventing errors with 0mm offset.

⋅Hybrid survey

 GNSS receiver can be mounted on top.

⋅Robust body

 Metal body for high durability.

⋅Reduce the prism lost

 through a semless arrangement of 8 prisms.

⋅Replaceable prisms

 Each prism is independent and non-glued.

SPECIFICATIONS

SET CONTENTS

• ⋅Prism
• ⋅Prism protection cover
• ⋅Cap for male screw
• ⋅Case
• ⋅Manual

OPTIONS

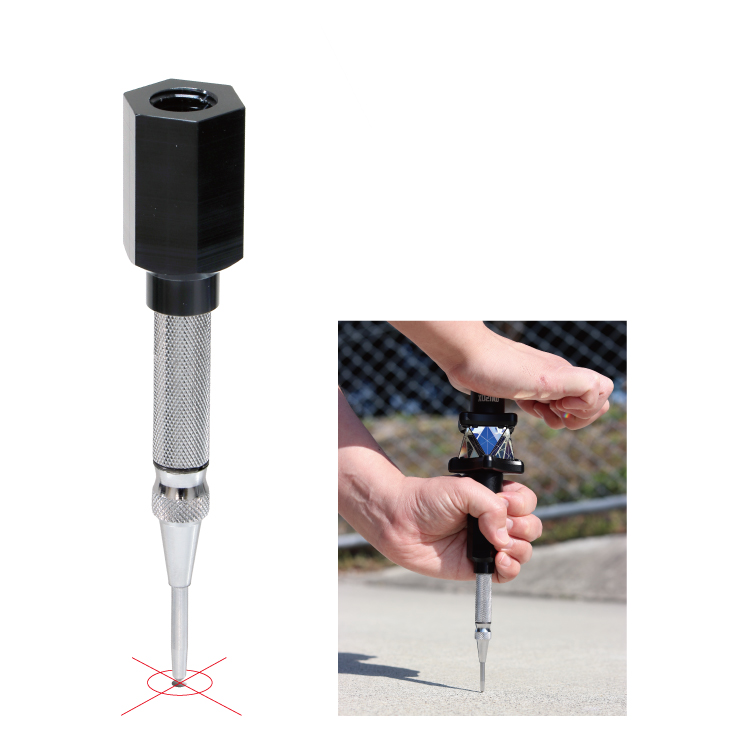

Shoe with Center Punch LAYOUT POINTER

LP-PN

Prism height	200mm
Screw	UNC5/8-11 female
Tip	Carbide tip
Size	φ30 × 145mm
