Search Results (Category: Monitoring Prisms)

Results 1 to 8 of 8

Category Code No. Model
Monitoring Prisms

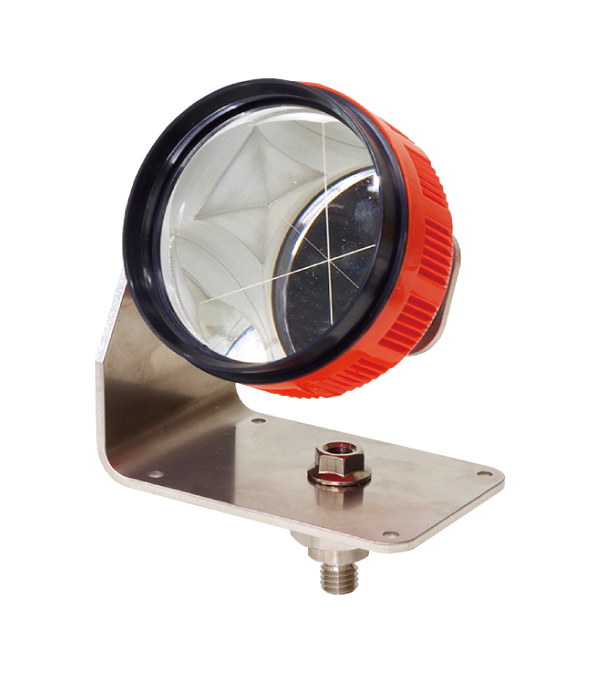

2.5INCH MONITORING BASE KIT

■Features
1. Adjustable a direction of prism in X & Y axis easily with
 high accuracy
2. Nodal prism
 Can be set at a -41mm, which offers optimal angle
 measurements, even when tilting in either
 the horizontal or the vertical axis
3. Anchor bolt is in the set

222256
222257
TT-41
RC-25
Monitoring Prisms

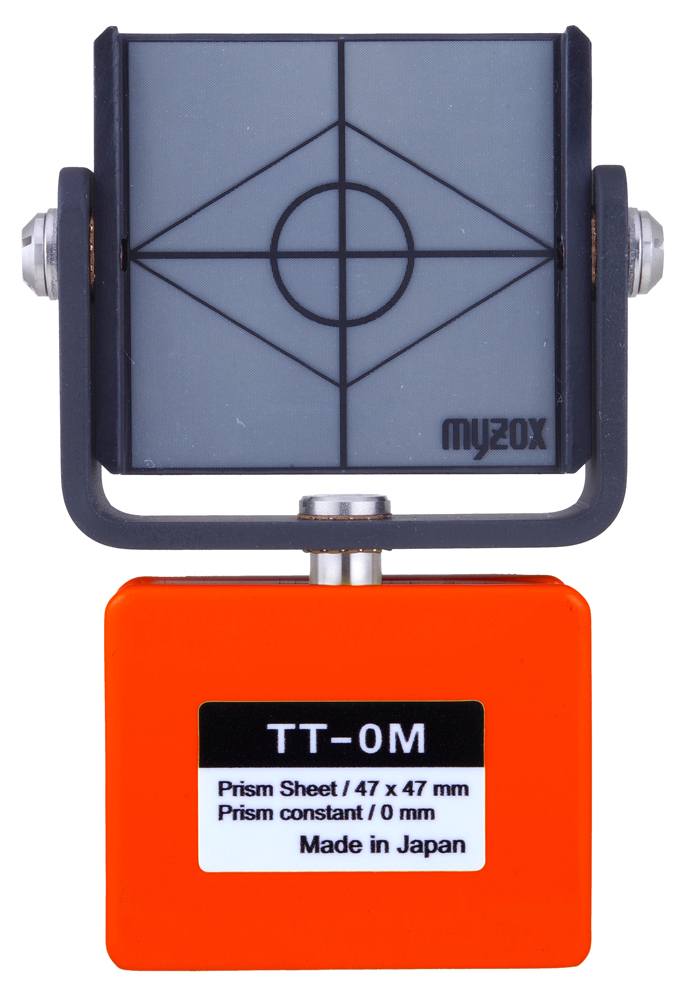

MONITORING PRISM

Features
1. Easy to use reflective target
2. Magnet can be directly affixed to point
3. 360 degree rotatable
4. Made in Japan

TT-0M
Monitoring Prisms

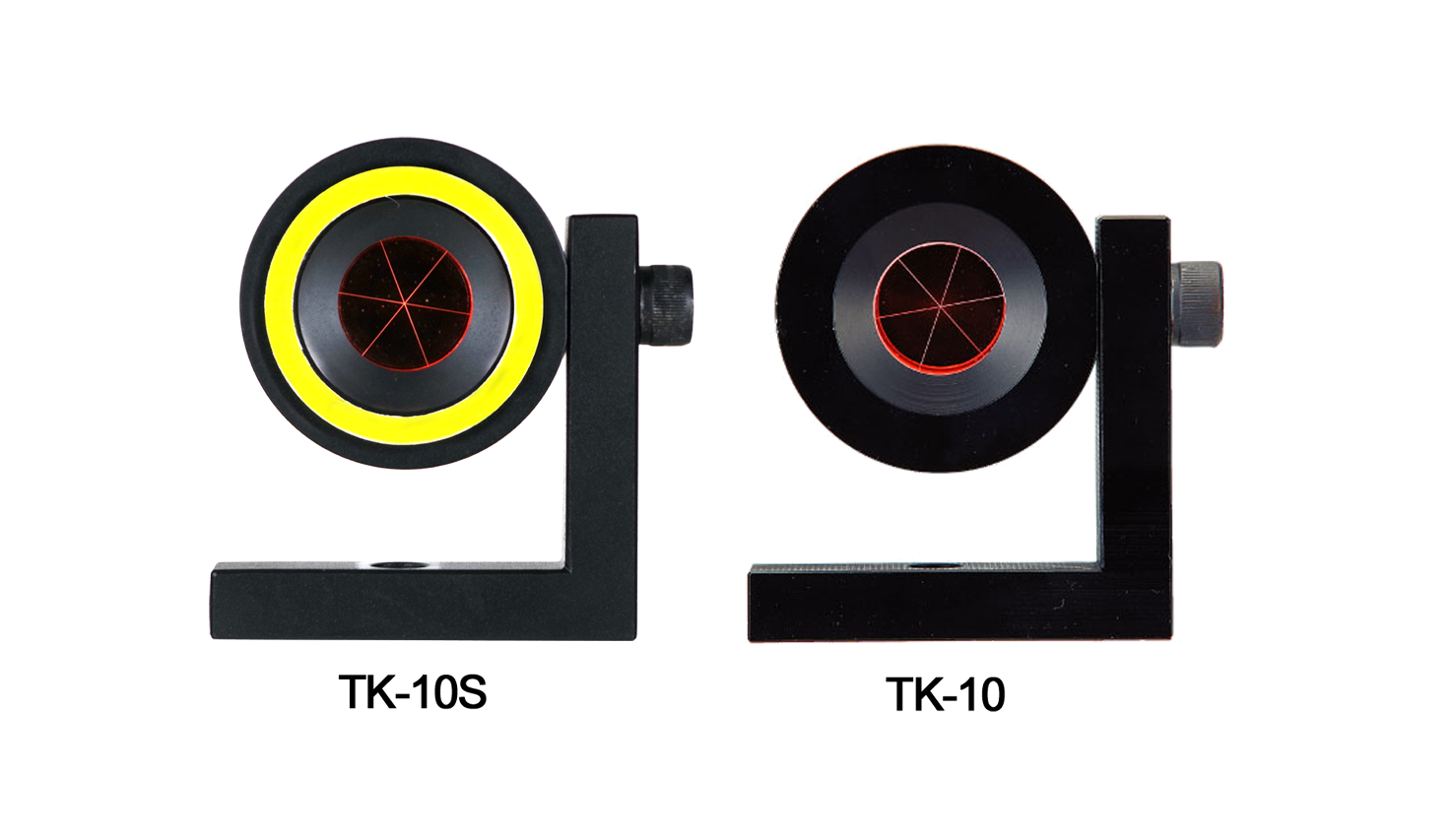

L TYPE MONITORING PRISM

■Features
1. Adjustable a direction of prism in X & Y axis easily
2. Prism anti-drop mechanism
3. High cost performance

219306
221437
TK-10
TK-10S
Monitoring Prisms
MINI MONITORING PRISM

■Features
1. Adjustable a direction of prism in X & Y axis easily
2. Sellectable the best match size by monitoring distance
3. Water Resistance structure
4. Anchor bolt is in the set

218459 TT-17
Monitoring Prisms

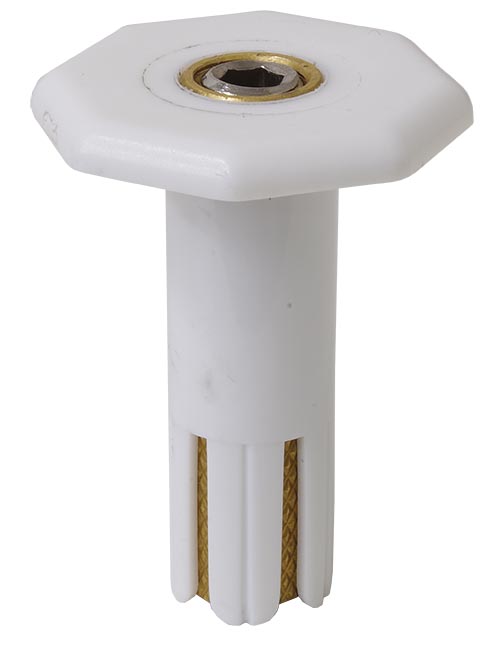

SURVEY WALL POINT PLUG

■Features
Adapters with monitoring prisms are relocatable

222276
222277
222343
SPP-40
SPI-M8
TTA-M8
Monitoring Prisms

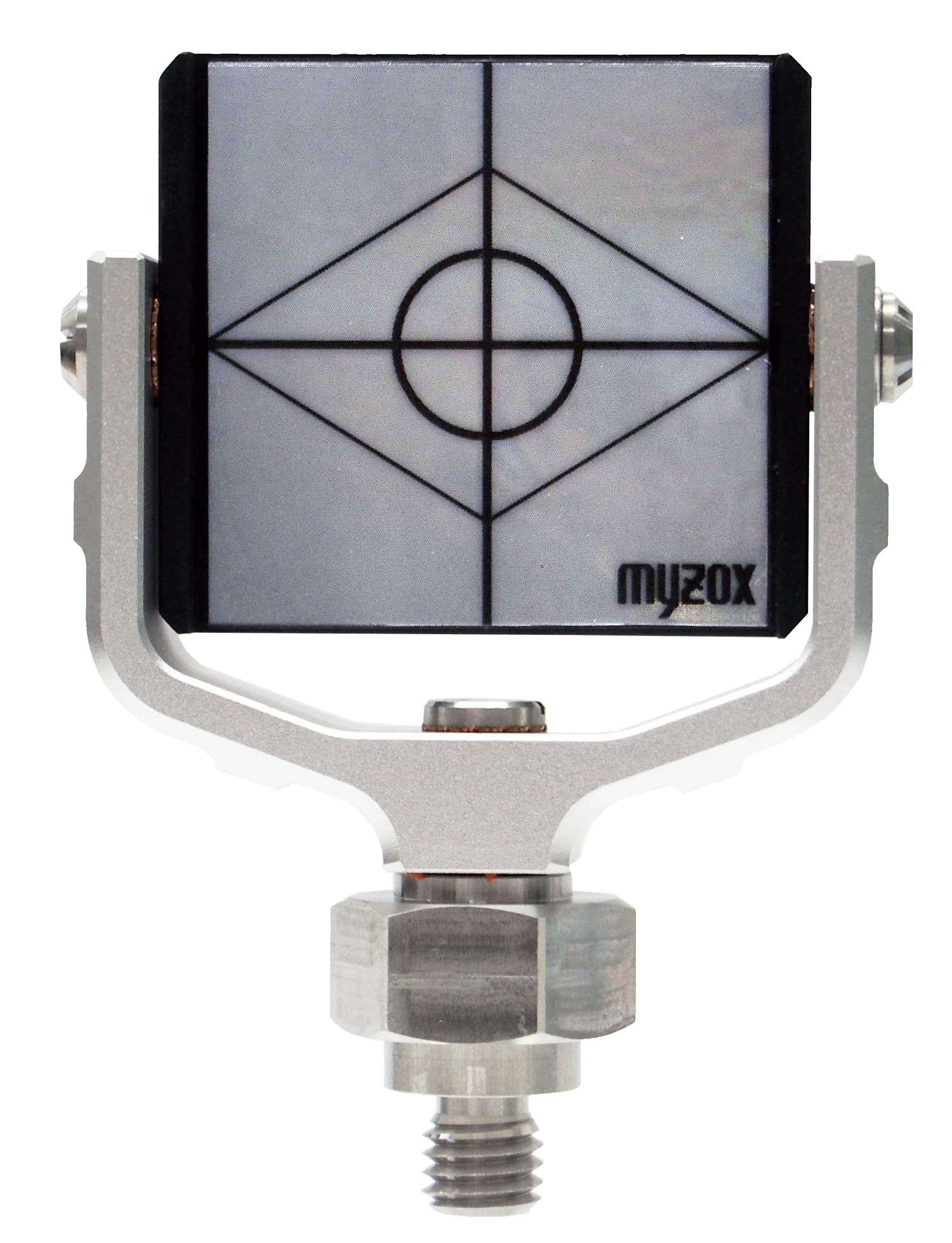

MONITORING PRISM

■Features
1. Adjustable a direction of prism in X & Y axis easily
2. Sellectable the best match size by monitoring distance
3. Water Resistance structure
4. Anchor bolt is in the set

218460 TT-27
Monitoring Prisms

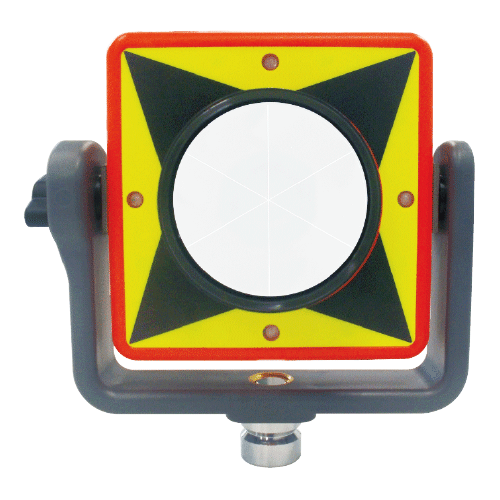

LED FLASHING PRISM

LED30P helps at night works, mining site or long distance works so on.
Because LED lights indicate where the prism is by flashing.
It's easy to change the brightness and frequency by switching the button at back side of prism target.

Selction of Brightness: 100%, 70%, 40%, 20%
Frequency of Flashing: 1hz, 3hz, 6hz, and lighting

When setting as prism constant 0, it must use with the attached adapter LA-0.

Suitable for

  • Suitable for Vast Field
  • Suitable for Measure The Height Difference
  • Suitable for Railway
  • Suitable for Total Station
240021 LED30P
Monitoring Prisms

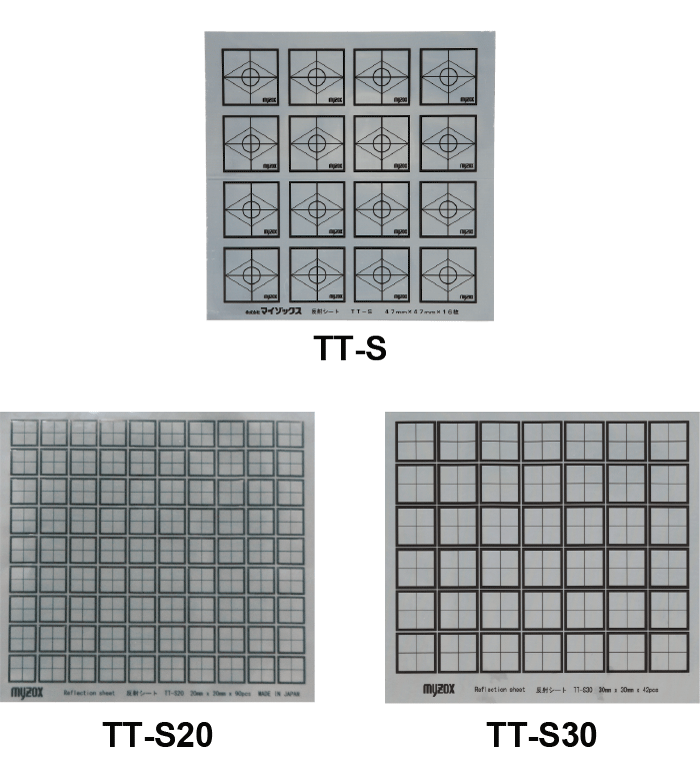

PRISM SHEET

■Features
1. Attach anywhere and reflect light of Total Station
2. Suitable for monitoring
3. Easy using and high cost performance

218458
219389
219265
TT-S
TT-S20
TT-S30
